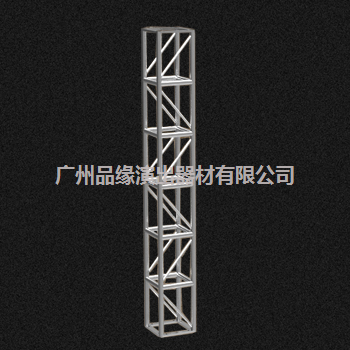

螺絲式桁架
鋁合金材質是由國際興發鋁業提供的6082/T6材質、6061/T6材質等
規格 :300*300 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重550kg.
SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ50mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 550kg
規格 :350*350 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達14米,滿負荷載重550kg.
SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ50mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 550kg
規格 :400*400 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達16米,滿負荷載重700kg.
SIZE:400*400/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ50mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 700kg
規格 :450*450 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達18米,滿負荷載重760kg.
SIZE:450*450/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ50mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 16m with max load 800kg
規格 :500*500 主管采用Φ50mm*3mm,副管:Φ50mm*2mm,斜管:Φ25mm*2mm單根規則長度爲1米-4米,最長連接可達20米,滿負荷載重760kg.
SIZE:500*500/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ50mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 20m with max load 800kg
