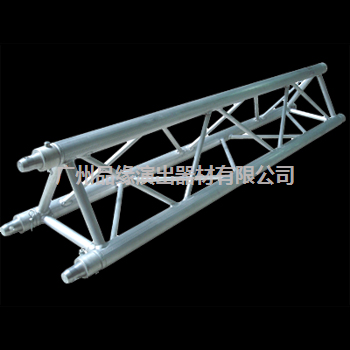

螺絲式桁架

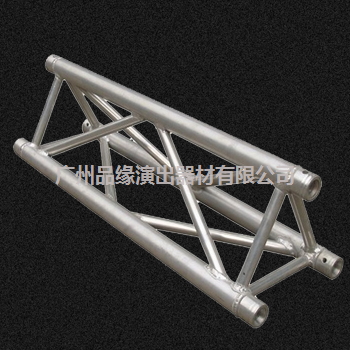

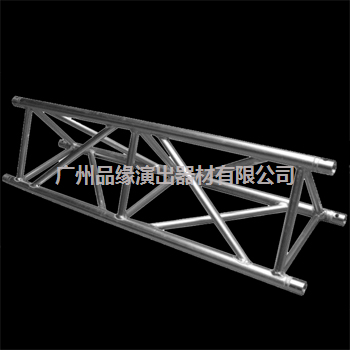

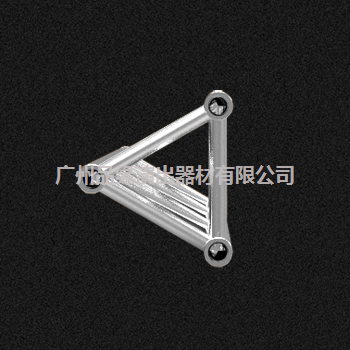

鋁合金插銷式三角架規格介紹：
規格 :250*250 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重350kg.
SIZE:290*290/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 350kg
規格 :290*290 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重480kg.
SIZE:290*290/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 480kg
規格 :300*300 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重520kg.
SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 520kg
規格 :350*350 主管采用Φ50mm*3mm,副管:Φ30mm*2mm,斜管:Φ25mm*2mm,單根規則長度爲1米-4米,最長連接可達12米,滿負荷載重550kg.
SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 550kg
