  • Specifications

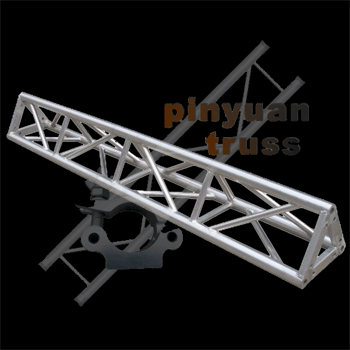

    • Product Name:aluminum triangle screw truss
    • Product ID:007
    • 分享到:
  • Details

  • SIZE:200*200/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 380kg


    SIZE:300*300/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 550kg


    SIZE:350*350/4mm thickness,Main tube Φ50mm*3mm,Vice Tube Φ30mm*2mm Brace is Φ25*2the normal length for one pc is 1m-4m,it can be stretched to 12m with max load 680kg
